Your location: Home > FU conveyor working principle and characteristics and parameters
Products

Product Name:FU conveyor working principle and characteristics and parameters

FU conveyor working principle and characteristics and parameters
  • FU conveyor working principle and characteristics and parameters
  • FU conveyor working principle and characteristics and parameters
Product Description

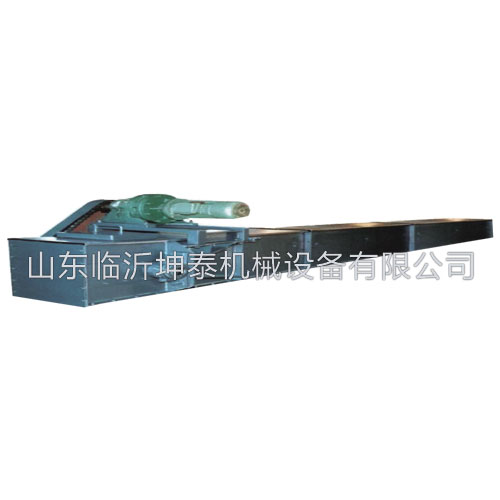

FU chain conveyor
FU chain conveyor (hereinafter referred to as "chain conveyor") is a horizontal tilt or (15) for conveying powder, small granular materials of new products, long service life, high reliability operation, energy efficient, sealing, safe and convenient maintenance. Its use is obviously better than the performance of screw conveyor, buried scraper conveyor, and other transportation equipment, is a kind of ideal new equipment. Has been widely used in building materials, construction, chemical, thermal power, food processing, mining, machinery, metallurgy, transportation, port and shipping industries.
The working principle of
FU chain conveyor, superiority stems from its work principle, because the material has the character of friction and lateral pressure, the movement of the conveyor chain making machine groove material internal pressure and the interparticle friction force to increase, when the layer between the internal friction is greater than the material and outer friction between the tank wall, the material will like water, together with the conveyor chain forward flow, layer height and machine the ratio of groove width, while a certain condition can form stable material flow. Advanced transmission principle, sophisticated design and manufacturing technology for the series of products provides a reliable guarantee for the good performance.
The main features
1, bue, efficient transport mechanism allows to transport a large number of materials in small capacity space, transport capacity of 15-600 m3 / h.
2, conveying energy consumption is low, with the aid of the material of inner friction, promote material to pull material, make its power saving 40% ~ 60% in comparison with screw conveyor.
3, sealing and safety, fully sealed casing made of dust can be seamlessly drill, environmental health, safe in operation and reliable running.
4, long service life, alloy material by the advanced heat treatment processing of conveyor chain, its normal life > 5 years, chain roller life (according to the different material) can use 1 ~ 3 years.
5, process arrangement and flexible, can be elevated, ground or pit to decorate, can level (not more than 15 degrees) installed or climbing a hill, also can add the same level grade installation, can be more in and out of the material.
6, long conveying length, horizontal conveying distance can reach more than 60 meters.
7, the use of low cost, power saving and durable, less maintenance.
8, the use of low cost, power saving and durable, repair rate is extremely low, reduce consumption, improve business efficiency.

型號

槽寬(mm)

理想粒度(mm)

10%最大力度(mm)

基本輸送量(m3/h)

物料濕度(理論)

鏈速

11

13.5

17

21

22.7

28

FU150

150

<4

<8

10


16


20


<5%以手抓捏成團撤手后仍能松散為度

FU200

200

<5

<10

20


30


40


FU270

270

<7

<15

35

45

55


70

80

FU350

350

<9

<18


70

85

100


130

FU410

410

<11

<21


90

110

139


175

FU500

500

<13

<25



170


210

270

FU600

600

<15

<30


184

224


276

340

FU700

700

<18

<32


250

305


376

460












More information about second-hand ball mill, conveyor, please log in at any time of second-hand ball mill at http://www.apigy.com/
